The new frontiers of eSWIR imaging

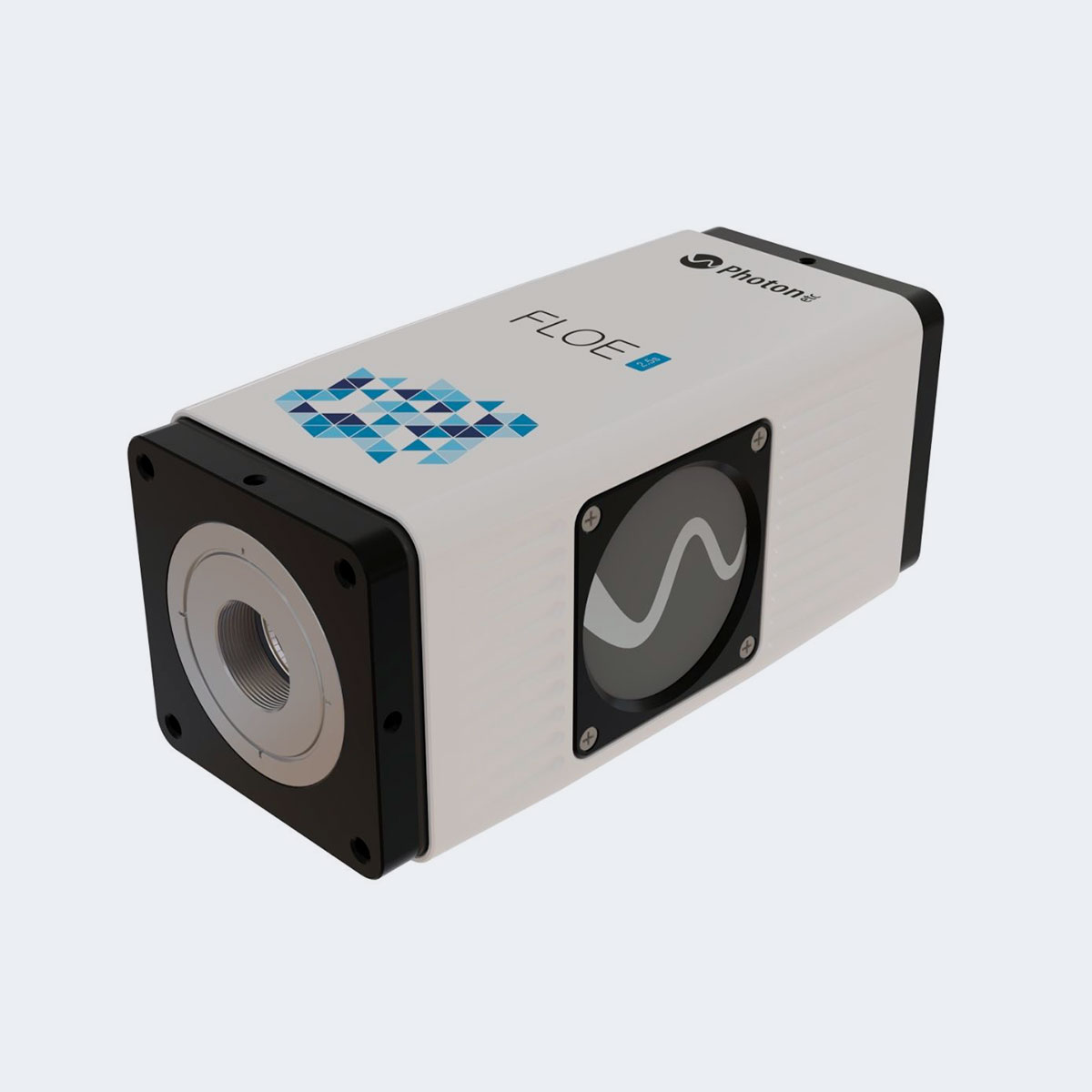

The FLOE 2.5s is a next-generation eSWIR infrared camera, covering the 800 to 2500 nm spectral range.
Offering a peak quantum efficiency of up to 88% and a very low-temperature cooled MCT (HgCdTe) sensor (-80 °C), it maximizes signal capture while minimizing noise, without requiring complex maintenance (no water, liquid nitrogen, or mechanical Stirling cooler). Its 640 × 512 pixel resolution and ultra-fast frame rates accurately capture the most demanding dynamic scenes. Equipped with USB 3.0 and CameraLink™ interfaces, it easily integrates into your industrial or defense systems and is controlled via PHySpec™ software or a SDK (C/C++, Python).
Technology
Category
A Growing Spectrum of Solutions
Technical Specifications
Applications
Technical Specifications |
FLOE 2.5s |
|---|---|
Technical SpecificationsSensor |
FLOE 2.5sMCT (HgCdTe) |
Technical SpecificationsSensor Format (px) |
FLOE 2.5s640 x 512 |
Technical SpecificationsPixel size |
FLOE 2.5s15 µm |
Technical SpecificationsSpectral range |
FLOE 2.5s800 - 2550 nm |
Technical SpecificationsPeak Quantum Efficiency |
FLOE 2.5s88 % |
Technical SpecificationsTypical operability |
FLOE 2.5s＞ 99.5 % |
Technical SpecificationsCooling Temperature@ 20°C ambiant |
FLOE 2.5s-80 °C |
Technical SpecificationsCooling method |
FLOE 2.5s5-TEC + forced air |
Technical SpecificationsTypical dark current |
FLOE 2.5s1 Mē/px/s |
Technical SpecificationsTypical gain setting(ē/ADU) |
FLOE 2.5sLow noise : 65 | High speed : 65 |
Technical SpecificationsTypical readout noise(ē) |
FLOE 2.5sLow noise : 215 | High speed : 280 |
Technical SpecificationsTypical full well capacity(kē) |
FLOE 2.5s1 |
Technical SpecificationsReadout modes |
FLOE 2.5sITR, IWR |
Technical SpecificationsFrame Rate |
FLOE 2.5sLow noise : 170 | High speed : 235 |
Technical SpecificationsROI Frame Rate Integration |
FLOE 2.5sLow noise : up to 5200 | High speed : up to 6900 |
Technical SpecificationsIntegration time range |
FLOE 2.5sfrom 50 μs to full well capacity |
Technical SpecificationsBit depth(bits) |
FLOE 2.5s14 bits |
Technical SpecificationsImage Format |
FLOE 2.5s16 bits HDF5, FITS and TIFF |

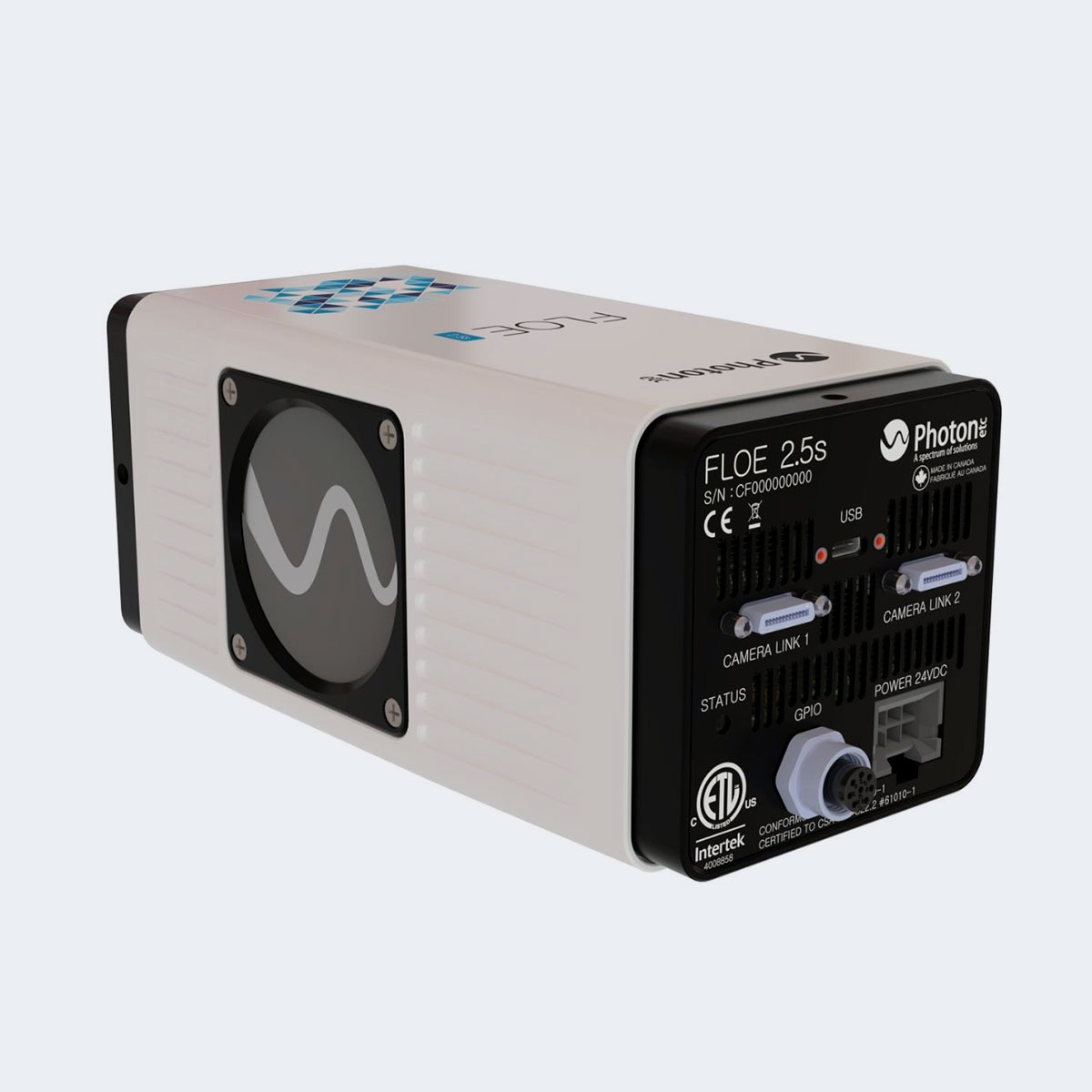

Technical SpecificationsComputer interface |
FLOE 2.5sUSB 3.0 ou CameraLink™ |
Technical SpecificationsExternal control |
FLOE 2.5sTrigger IN/OUT |
Technical SpecificationsSoftware |
FLOE 2.5sPHySpec™ control and analysis software, SDK (C/C++, Python) |
Technical SpecificationsImage correction |
FLOE 2.5s2 or 3 points NUC and pixel correction |
Technical SpecificationsAmbient temperature range |
FLOE 2.5s-20 °C à 50 °C |
Technical SpecificationsPower Supply |
FLOE 2.5s24V DC |
Technical SpecificationsDimensions |
FLOE 2.5s84 mm x 84 mm x 160 mm |
Technical SpecificationsWeight |
FLOE 2.5s1.9 kg |
