Skip to main content

ACS Publications

  • Perovskite

Ethylenediamine Addition Improves Performance and Suppresses Phase Instabilities in Mixed-Halide Perovskites

Authors Margherita Taddei, Joel A. Smith, Benjamin M. Gallant, Suer Zhou, Robert J. E. Westbrook, Yangwei Shi, Jian Wang, James N. Drysdale, Declan P. McCarthy, Stephen Barlow, Seth R. Marder, Henry J. Snaith, and David S. Ginger

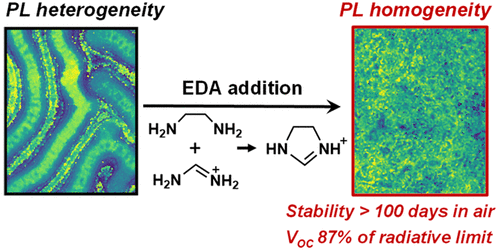

We show that adding ethylenediamine (EDA) to perovskite precursor solutions improves the photovoltaic device performance and material stability of high-bromide-content, methylammonium-free, formamidinium cesium lead halide perovskites FA1–xCsxPb(I1–yBry)3, which are currently of interest for perovskite-on-Si tandem solar cells. Using spectroscopy and hyperspectral microscopy, we show that the additive improves film homogeneity and suppresses the phase instability that is ubiquitous in high-Br perovskite formulations, producing films that remain stable for over 100 days in ambient conditions. With the addition of 1 mol % EDA, we demonstrate 1.69 eV-gap perovskite single-junction p-i-n devices with a VOC of 1.22 V and a champion maximum-power-point-tracked power conversion efficiency of 18.8%, comparable to the best reported methylammonium-free perovskites. Using nuclear magnetic resonance (NMR) spectroscopy and X-ray diffraction techniques, we show that EDA reacts with FA+ in solution, rapidly and quantitatively forming imidazolinium cations. It is the presence of imidazolinium during crystallization which drives the improved perovskite thin-film properties.

Related Products
