From solar cells to advanced materials, our fast and all-in-one hyperspectral microscope IMA PL offers unmatched image and data quality. This hyperspectral platform is optimized for both visible and infrared spectral range.



CHARACTERISTICS

  • Fast global mapping (non scanning)

  • High spatial and spectral resolution

  • Complete system (source, microscope, camera, filter, software)

  • Non-destructive analysis

  • Customization available

ASK FOR A QUOTE

APPLICATIONS

PHOTOVOLTAIC

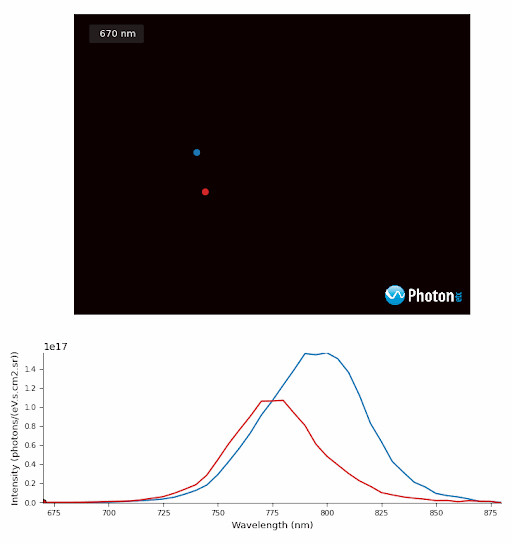

IMA PL provides spectrally and spatially resolved luminescence images. It was successfully used to investigate spatial distribution of optoelectronic properties of CIS, CIGS, GaAs and perovskite solar cells.

READ MORE

MULTIPLEXING OF 17 SWCNTs

IMA-IR™ is used to identify and map the distribution of 17 different species (chiralities) of carbon nanotubes. With IR hyperspectral microscopy, it is possible to separate these species, with single SWNT spatial resolution, on surfaces, in live cells (in vivo) and in vitro.

READ MORE

NANOPARTICLES IN CANCER CELLS

When Photon etc’s hyperspectral imager is combined with a highly effective dark field condenser, it is possible to generate high-contrast images of biological samples such as cancer cells.

READ MORE

THIN FILMS OF GaP

Spectral dependence of the Faraday magneto-optical effect with temperature dependence measurements were performed on a semiconductor 2 µm epilayer (GaP) grown with embedded metallic ferromagnetic nanoclusters (MnP).

READ MORE

PRODUCT SPECIFICATIONS

  IMA PL VIS NEW: IMA PL IR
SPECTRAL RANGE   400 - 1000 nm 900 - 1700 nm
EXCITATION WAVELENGTHS   447 nm, 532 nm, 635 nm, 660 nm  785 nm, 808 nm, 980 nm
SPECTRAL   RESOLUTION   < 2.5 nm < 4 nm
SPATIAL   RESOLUTION   Sub-micron
MICROSCOPE   Upright
OBJECTIVES   20X, 50X, 100X
MAXIMUM SAMPLE   FORMAT   4" x 4" (10 cm x 10 cm)
X, Y TRAVEL RANGE      76 mm x 52 mm
Z STAGE   RESOLUTION   1 µm
MAXIMUM   SCANNING SPEED   150 ms
WAVELENGTH   ABSOLUTE   ACCURACY   0.25 nm 0.5 nm
VIDEO MODE   Caméra megapixel pour visualiser l'échantillon
PREPROCESSING   Filtrage spatial, outils statistiques, extraction de spectres, normalisation des données, calibration spectrale
HYPERSPECTRAL   DATA FORMAT   FITS, HDF5
SINGLE IMAGE DATA        FORMAT  JPG, PNG, TIFF, CSV, PDF, SGV
SOFTWARE  PHySpec control and analysis
DIMENSIONS   ≈ 40" x 30" x 30" (102 cm x 76 cm x 76 cm)
WEIGHT   ≈ 80 Kg
*UPDATES   IMA PL VIS IMA PL IR
LASER   Additional excitation wavelengths available
HI CAMERA   Back-illuminated camera N/A
  EMCCD N/A
HIGH-RESOLUTION   MODULE   N/A

900-1700 nm, FWHM < 1 nm

PUBLICATIONS

VIDEO

Presentation of Photon etc's Hyperspectral Microscope

From solar cells to live cell imaging, our fast and all-in-one hyperspectral microscope IMA offers unmatched image and data quality.




 Photon etc's Global Imaging Technology

This video shows the conceptual difference between hyperspectral global imaging and raster scan (line-scan, push-  broom). With global imaging, the gain in acquiring 3D data, 2D spatial and 1D spectral, is important since only a  few monochromatic images are required to cover  the complete spectral range where one needs to  take the full spectrum for each point or line in the image with other technologies.
